Crystal Hybrid Hollow

-
For our hollow hybrid we had several difficulties, especially on our first draft of the hybrid.


This is Clarice's concept objects.

 This was the several drafts we had trying to combine Clarice's onion bulb shape with my twisty cage looking shape.

We had a little bit of a hard time combing these two since there were a lot of protruding edges, uneven sections. They wouldn't join easily since my shape would only go through naked edges.

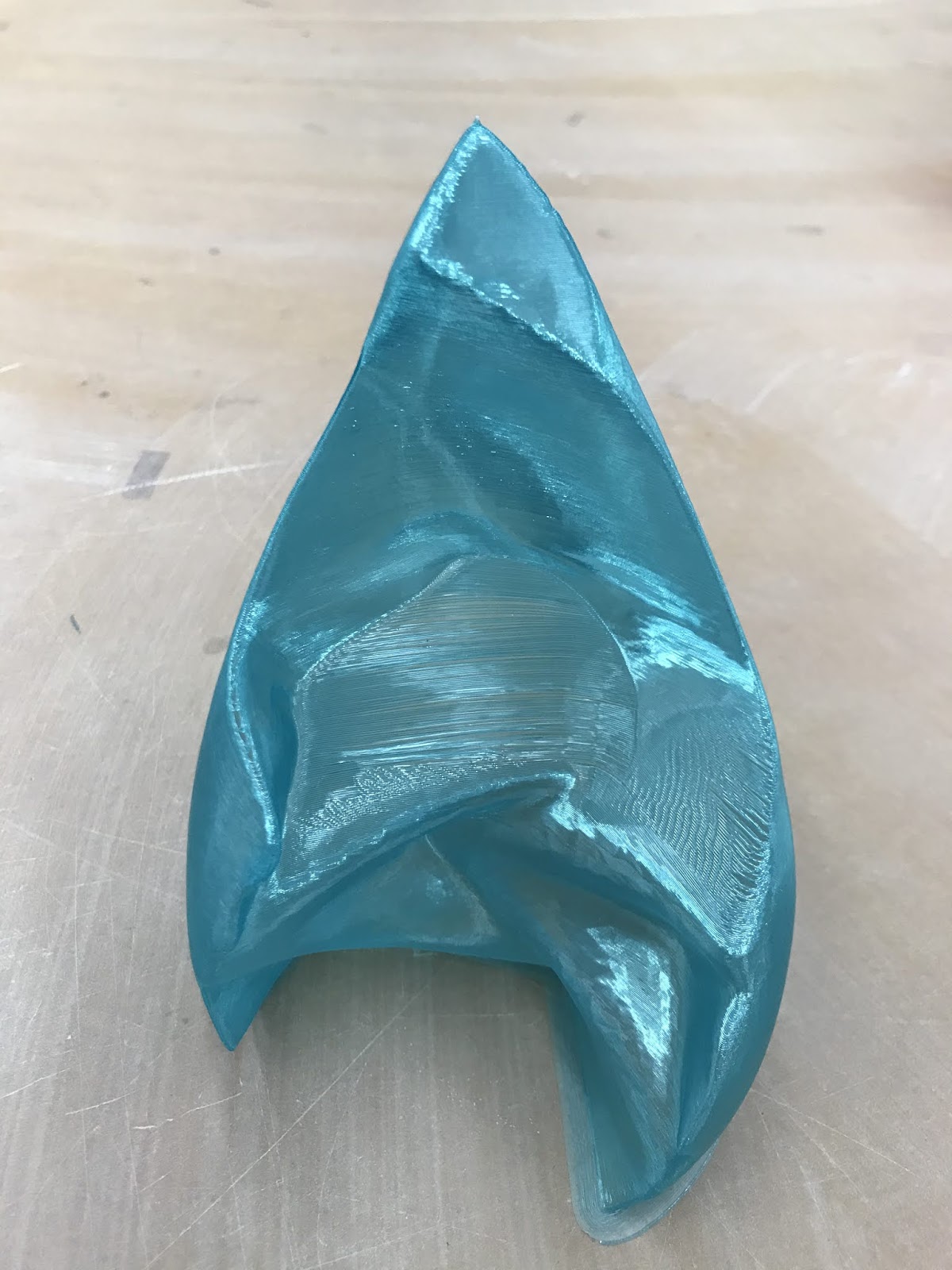

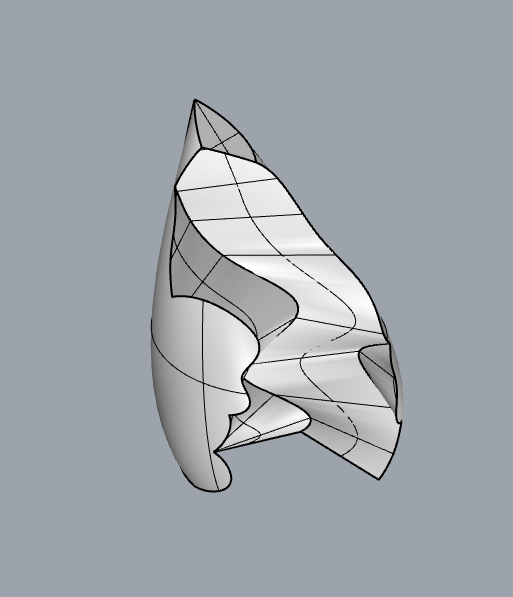

Our second draft a more of a success. We instead combined my teardrop shape with a piece of her jagged rose and Boolean difference it. In the end we got the cool looking teardrop crystal shape.

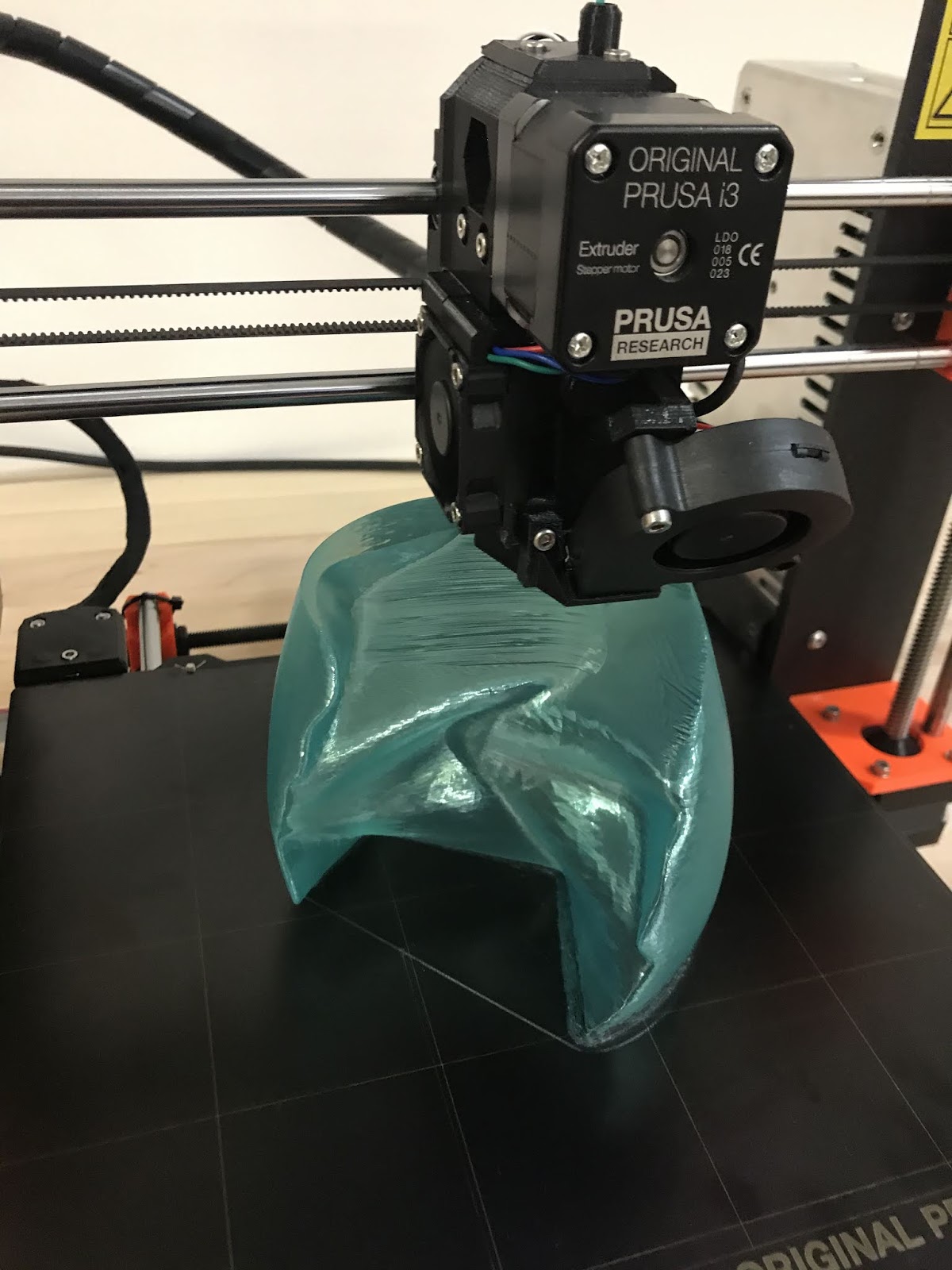

The filament the we had made look better since it was see through with a shiny finish. It really made it look more like a crystal.

If we had overlooked our hybrid again, we would have stretched out to make it taller so there wouldn't be any steep lines on it.
